IP Network Cameras: Fixed Dome

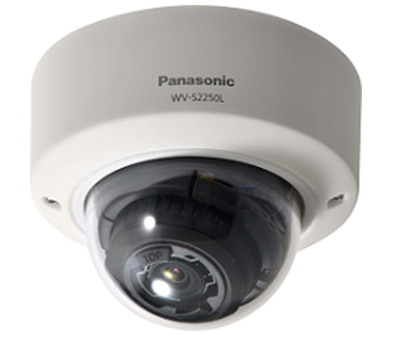

Panasonic WV-S2550L is a 5-megapixel Vandal Resistant Dome Network Camera

The Panasonic WV-SFV781L 4K H.264 Vandal-Resistant IR Dome Network Camera uses a 1/1.7" sensor and the Panasonic True 4K F1.6 lens to deliver images in 4K (3840 x 2160) resolution at 30 fps. It achieves a minimum illumination of 0.3 lux (color) and 0.04 lux (B&W). The camera provides a 96° (Wide) to 17° (Tele) horizontal angular field of view with a 16:9 aspect ratio and a 100° (Wide) to 17° (Tele) view with a 4:3 aspect ratio. Equipped with Smart IR LEDs that auto-adjust according to ambient lighting, the camera can capture clear images in complete darkness (0 lux) up to 98' (with IR LED setting at auto-high). It offers virtual PTZ operation that allows the operator to crop certain areas in the camera view while still recording the whole area, so no event is missed.

  • 5-megapixel images up to 30 fps
  • iA (Intelligent Auto)
  • Super Dynamic 120dB
  • Color night vision (0.0044 to 0.07 lx)
  • H.265 Smart Coding
  • Captures 4K (3840 x 2160) images up to 30 fps, 12MP (4000 x 3000) images up to 15 fps
  • Comes with 1/1.7" high-sensitivity MOS image sensor
  • 4K ultra engine
  • 6x zoom lens with a 3-drive lens system that offers a horizontal angle of 100° (Wide) to 17° (Tele) with a 4:3 aspect ratio
  • Multiple H.264 (High Profile) and JPEG streams ensure simultaneous real-time monitoring and high-resolution recording
  • Smart DoF (Depth of Field) feature automatically optimizes the DoF to enhance focus for objects within camera view that are both near and far
  • 3D-DNR (Digital Noise Reduction) ensures noise reduction in various conditions
  • Day & Night function with ICR filter allows the camera to offer a high sensitivity of 0.3 lux (color) and 0.04 lux (B/W) at F1.6
  • Equipped with Smart IR LEDs that are controlled to match the environment, and allow the camera to capture clear images of human faces without white blur in complete darkness (0 lux)
  • Camera attachment bracket allows easy camera installation with the possibility to adjust the camera in multiple directions to achieve the desired viewing area
  • VIQS (Variable Image Quality on Specified area) technology allows the camera to retain higher image quality in eight designated locations, while the excluded areas will have decreased image quality, ensuring efficient use of storage space and bandwidth
  • Cropping function allows the operator to view the entire image, as well as the selected area, simultaneously
  • Up to 4 image capture areas can be specified, and it is also possible to control the sequence
  • 1x, 2x, 4x digital zoom controlled by a browser
  • VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level, and 10 steps detection size
  • Privacy Zone function to mask up to 8 areas, such as house windows and entrances/exits
  • Camera title display with up to 20 alphanumeric characters on the browser
  • Alarm sources, including 3 terminal input, VMD, and Panasonic alarm command, can trigger actions such as SDXC/SDHC/SD memory recording, FTP image transfer, E-mail notification, indication on browser, alarm terminal output, and Panasonic alarm protocol output
  • Full duplex bi-directional audio support allows interactive communication between camera site and monitoring site (speaker and mic not included)
  • SDXC/SDHC/SD memory card slot for manual recording (H.264/JPEG), alarm recording (H.264/JPEG), and backup upon network failure (H.264/JPEG)
  • Fog compensation function
  • HLC (High Light Compensation) reduces the effect of strong light sources such as vehicle headlights to prevent the camera from being blinded
  • SCC (Super Chroma Compensation) function achieves better color reproduction even in low illumination
  • H.264 images can be transmitted over HTTP protocol in the Internet mode
  • IPv4/IPv6 protocol supported
  • Supports SSL, DDNS (viewnetcam, RFC2136)
  • Still images (JPEG) can be viewed on mobile phones via the Internet
  • ONVIF Profile S and G compliant for third-party integration
  • IP66-rated water and dust resistant enclosure
  • Compatible with IEC60529 measurement standard; Type 4X (UL50), NEMA 4X compliant
  • Integrated dehumidification device for use in various weather conditions
  • Vandal resistant for high reliability (IK10)
  • Rain wash coating on dome cover for visibility in adverse weather conditions
